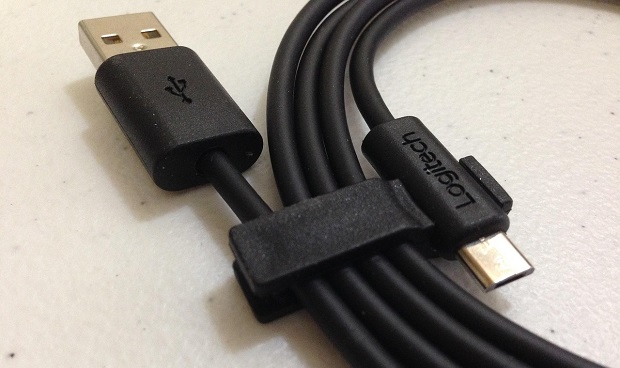

Today, we’re here to discuss the different types of USB connectors and their uses. The USB (Universal Serial Bus) connector is a highly multipurpose, consistent, and widely used connector that allows for easy data and power transfer between different devices. It provides a way to exchange data and receive power from a host device.
What is a USB Connector?
A USB connector is a type of physical interface that connects and communicates with external USB-enabled devices. It is typically used for connecting multiple devices, such as computers, printers, cameras, smartphones, tablets, and external hard drives.
There are different types of USB connectors based on their shapes and sizes. The USB connector has special features such as data transfer rates, power delivery, and compatibility with different devices.
Moreover, USB connectors are versatile, reliable, user-friendly, lightweight, and make them a popular choice for connecting and transferring data between devices. It is regularly used in various devices such as computers, smartphones, tablets, printers, cameras, and gaming consoles.
Different Types of USB Connectors
USB connectors are always used to connect and communicate with external devices, such as charging mobile phones and transferring data. The size of the USB interface connector is not the same; different interfaces are connected to different devices. There are three different types of USB Connectors available in the world of IT market, such as USB Type-A, USB Type-B, and USB Type-C.
USB Type-A Connector
USB Type-A is the most common and familiar type of USB connector that is used for connecting various devices such as computers, printers, and gaming consoles. It is one of the most used USB connectors and is compatible with different operating systems such as Windows, Mac OS X, Linux, and Chrome OS.
In addition, there are two versions of USB Type-A connectors, such as USB 2.0 and USB 3.0/3.1. The USB 3.0/3.1 Type-A connectors are faster and can provide a higher data transfer rate than USB 2.0.
Features:
- It’s looking flat and rectangular.
- It has four pins.
- It can only be inserted in one direction.
- The data transfer Speed of USB 2.0 is 480 Mbps
- The data transfer Speed of USB 3.0 is 5 Gbps.
Benefits
- Compatible with computers, smartphones, cameras, printers, and hard drives.
- Reliable and Versatile USB connector.
Limitations
- One-way insertion only.
USB Type-B Connector
USB Type-B connectors are types of USB connectors that are typically used in printers, scanners, and external hard drives. It is a less commonly used USB connector that is designed to be inserted into a device as the peripheral connector.
There are several versions of USB Type-B connectors, such as Standard-B, Mini-B, and Micro-B connectors. The Standard-B connector is a square-shaped and large USB connector that is used on larger devices such as printers and scanners.
The Mini-B connector is smaller than the Standard-B and is often used on portable devices such as cameras and external hard drives. The Micro-B connector is also smaller than the Mini-B connector, which is usually used for smartphones, tablets, and other small devices.
Features:
- It is a square-shaped USB connector
- It has four pins
- It is used only for unidirectional.
- The data transfer Speed of USB 1.1 is 12 Mbps
- The data transfer Speed of USB 2.0 is 480 Mbps
Benefits
- Compatible with printers, scanners, and external hard drives.
- Reliable and Flexible USB connector.
Limitations
- One-way insertion only.
Mini-USB Types of Connector
Mini-USB is a smaller version and rectangular type of USB connector that was especially used for portable devices such as smartphones, digital cameras, and MP3 players. The Micro-USB and USB Type-C connectors improved their features and capabilities.
Features:
- It’s looking small and compact in design.
- It has five pins
- It is used for both unidirectional and bidirectional.
- The data transfer Speed of USB 1.1 is 12 Mbps
- The data transfer Speed of USB 2.0 is 480 Mbps.
Benefits
- Compatible with smartphones, cameras, and MP3 players.
- Portable and Compact design.
Limitations
- One-way insertion only.
Micro-USB Type of Connectors
Micro-USB is a type of USB connector that can transfer data and deliver power to different portable devices such as smartphones, tablets, and digital cameras. The connector has been specially designed for a longer usable time than the previous connectors. The Micro-USB connector has recently been replaced by the USB Type-C connector, which has improved its features and performance.
Features:
- Small, rectangular, and compact in design.
- It has five pins.
- Accessible for both unidirectional and bidirectional.
- The data transfer speed of USB 1.1 is 12 Mbps.
- The data transfer Speed of USB 2.0 is 480 Mbps.
Benefits
- Portable, compatible, and compact in design.
- Easier to connect and disconnect.
- At the same time, Data transfer and Power delivery are possible.
Limitations
- Fragile and can be damaged easily.
- Limited to data transfer speed.
- Limited to Power delivery.
USB Type-C Connectors
USB Type-C is a small, versatile, reversible, more powerful, and newer type of USB connector that was introduced in 2014. The connector has faster data transfer speeds and power delivery to connected host devices. The USB Type-C is compatible with HDMI, DisplayPort, and VGA, and newer types of devices such as laptops, smartphones, and tablets.
One of the important concerns of this connector is its ability to transfer data, power, and video signals over a single cable. It can be used for data transfer, charging, and connecting with an external device at the same time.
Features:
- It’s looking small, versatile, and reversible.
- It has 24 pins and is symmetrical for use.
- Data transfer Speed:
- USB 3.2 Gen 1: 5 Gbps,
- USB 3.2 Gen 2:10 Gbps,
- USB 3.2 Gen 2×2: 20 Gbps
- USB 4 – 40 Gbps.
Benefits
- Convenient and user-friendly.
- Fast-charging capabilities.
- Single cable used for data transfer, power, and video signal.
- Compatible with laptops, smartphones, and tablets.
- High power delivery capacity.
- Faster data transfer speed.
Limitations
- Not compatible with all devices, such as older devices.
- It requires more electronics to manage data transfer and power delivery.
USB 3.1 Gen 1 Connector
USB 3.1 Gen 1 is the newest types of USB connector, which provides faster data transfer speeds and higher power delivery than the previous USB connectors. The USB 3.1 Gen 1 connector is mentioned as USB 3.0, which is available in both Type-A and Type-C configurations.
It is ideal for transferring large files or streaming HD video, which is ten times faster than the USB 2.0 standard. The connector can charge larger devices such as tablets and smartphones.
Features:
- It’s a small, rectangular, and versatile connector.
- The data transfer rate is 10 times faster than that of USB 2.0.
- The data transfer speed is 5 Gbps.
- It can deliver up to 5V/2.4A of power.
Benefits
- Increased power delivery capacity.
- Compatible with previous USB standards.
- Faster data transfer and power delivery.
- Compatible with tablets and smartphones.
- Capability to charge larger devices.
Limitations
- Limited cable length.
- Not compatible with all devices.
- Not appropriate for all applications.
- Limited Power delivery for some devices, such as laptops.
USB 3.1 Gen 2 Connector
USB 3.1 Gen 2 is an updated and improved version of USB 3.1. It provides faster data transfer speeds and power delivery than the USB 3.1 Gen 1 and is available in both Type-A and Type-C configurations.
This connector can transfer high-bandwidth applications, large files, and high-resolution video, which is two times faster than the previous connector. The USB 3.1 Gen 2 connector can charge larger devices such as laptops and supports DisplayPort and Thunderbolt 3 technologies.
Features:
- It’s a small, rectangular, and versatile connector.
- Faster than USB 3.1 Gen 1.
- The data transfer speed is 10 Gbps.
- It can deliver up to 5V/3A of power.
Benefits
- Increased power delivery capacity.
- Compatible with previous USB standards.
- Faster data transfer and power delivery.
- Capability to charge larger devices such as laptops.
Limitations
- Dedicated power adapters are needed for laptop charging.
Summary of Different Types of USB Connectors
The summary of different types of USB connectors is as follows:
| Connector Type | Data Transfer Rate | Power Delivery | Reversible |
| USB Type-A |
|
Up to 5V, 900mA | No |
| USB Type-B |
|
Up to 5V, 500mA | No |
| Mini-USB |
|
Up to 5V, 500mA | No |
| Micro-USB |
|
Up to 5V, 1.8A | No |
| USB Type-C |
|
Up to 100W, 5A | Yes |
| USB 3.1 Gen 1 | 5 Gbps | Up to 5V, 900mA | No |
| USB 3.1 Gen 2 | 10 Gbps | Up to 20V, 5A | No |
Conclusion
Finally, USB connectors are faster, versatile, and more user-friendly to carry. If you need to transfer data from an external hard drive, then a USB connector is required. I’m confident the post types of USB connectors will be helpful for you!
